Sound stage dimensions
- Length – 48.9 m
- Width – 28.9 m
- Height – Ceiling – 14.8 m
- Below Truss – 14.3 m
- Area – 1500 sqm

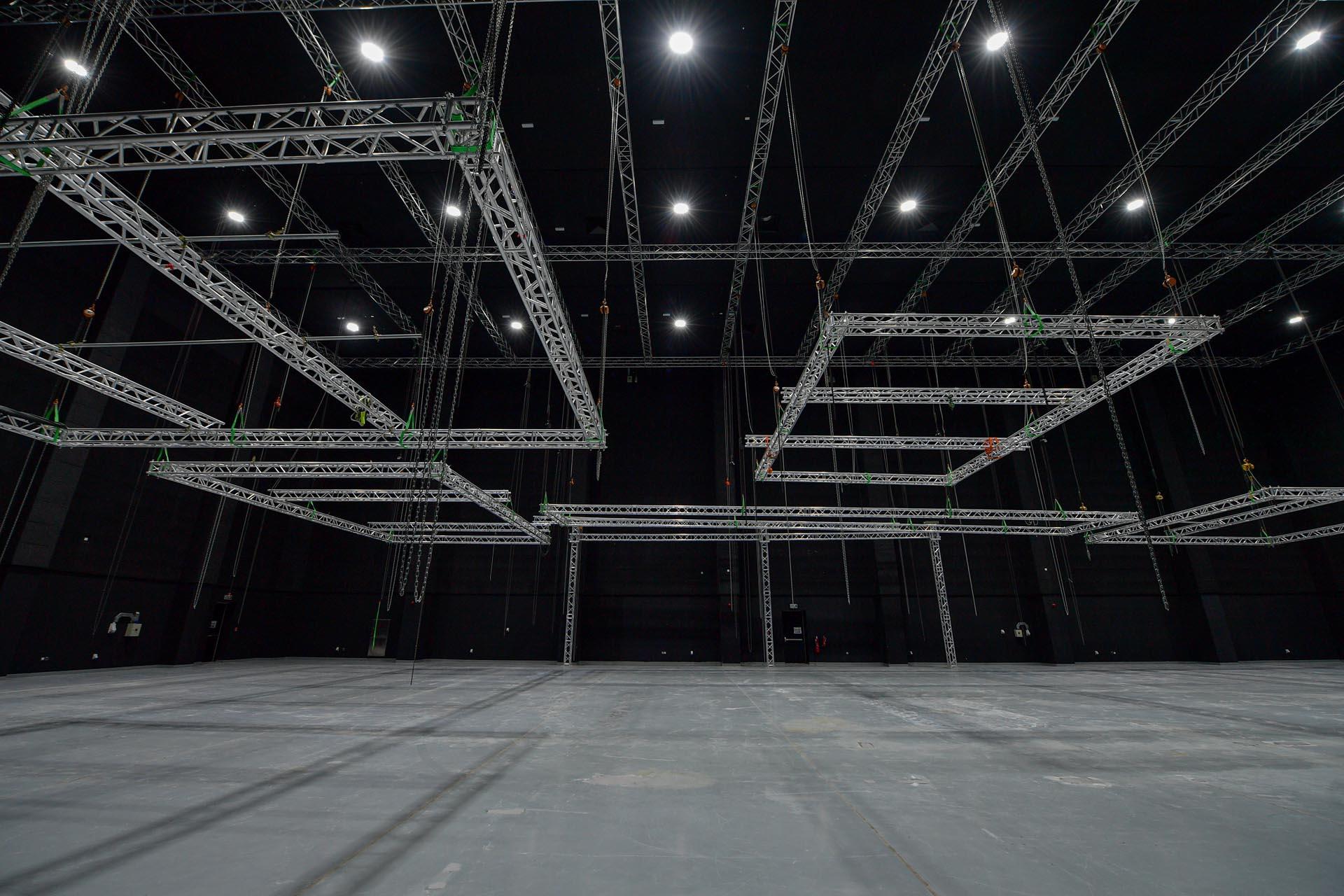

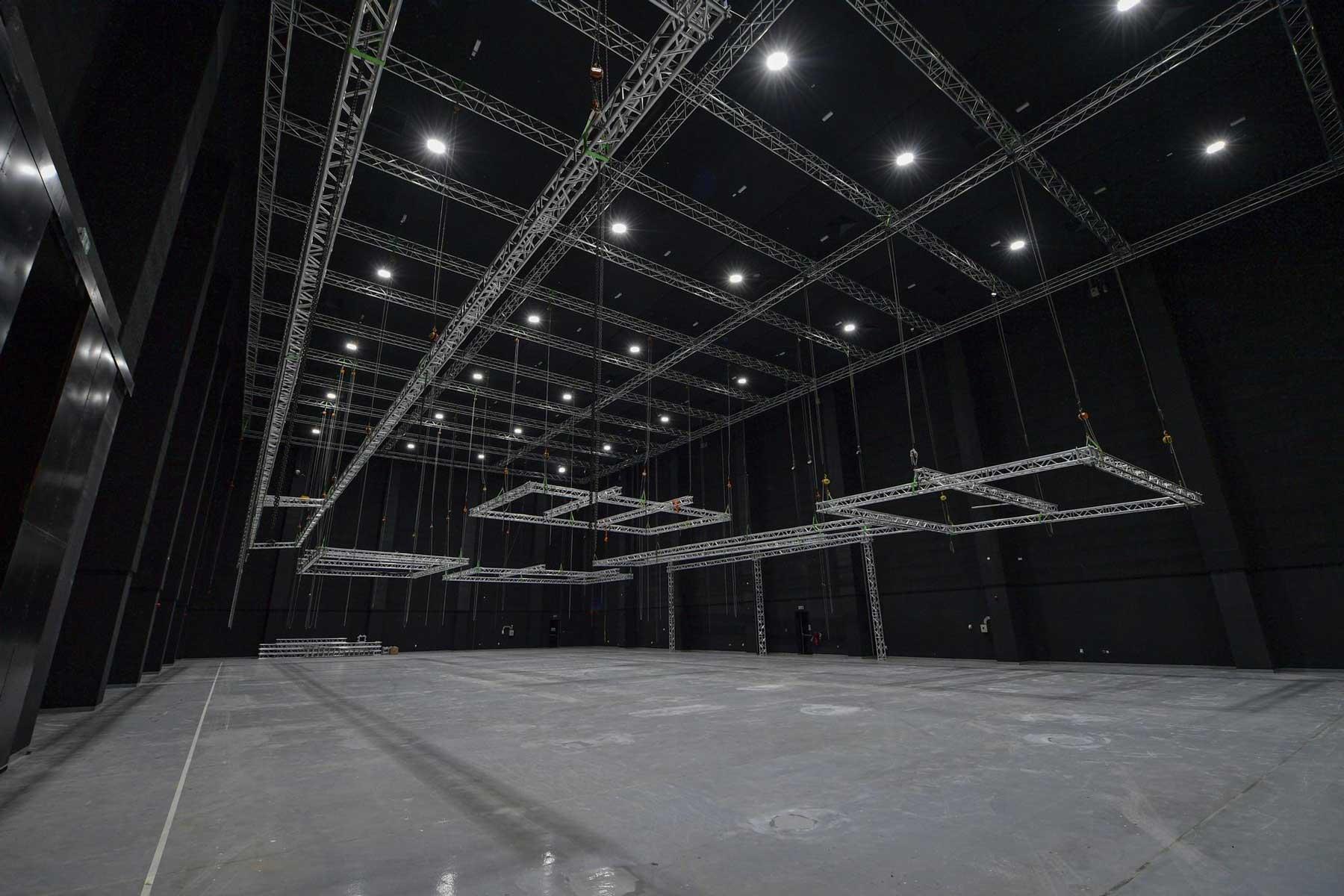

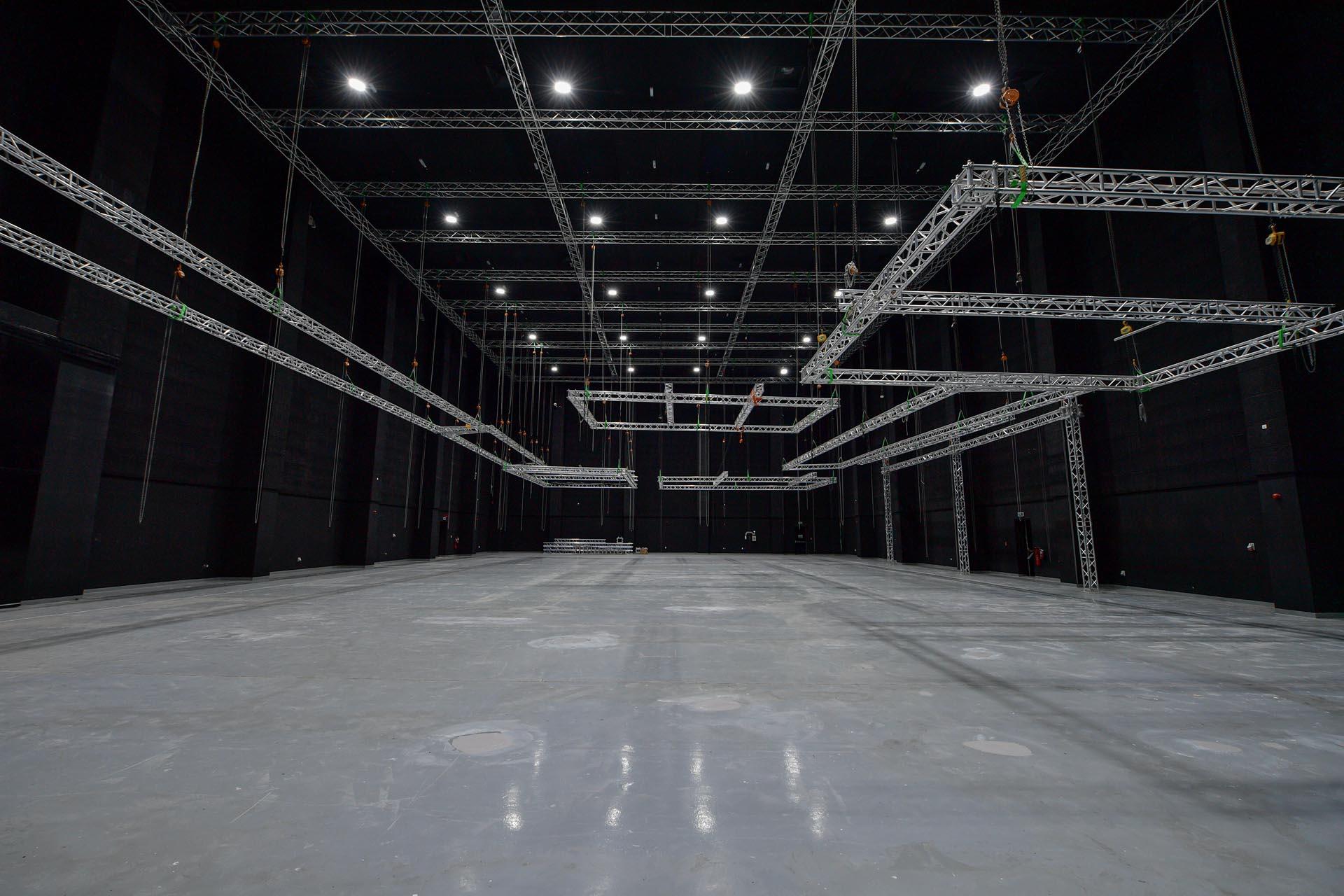

Sound Stage 01
Designed for seamless production at every scale, Sound Stage 01 is crafted to support the full spectrum of productions, from feature films to television and commercials.
- Soundstage 1: 1,500 sq.m

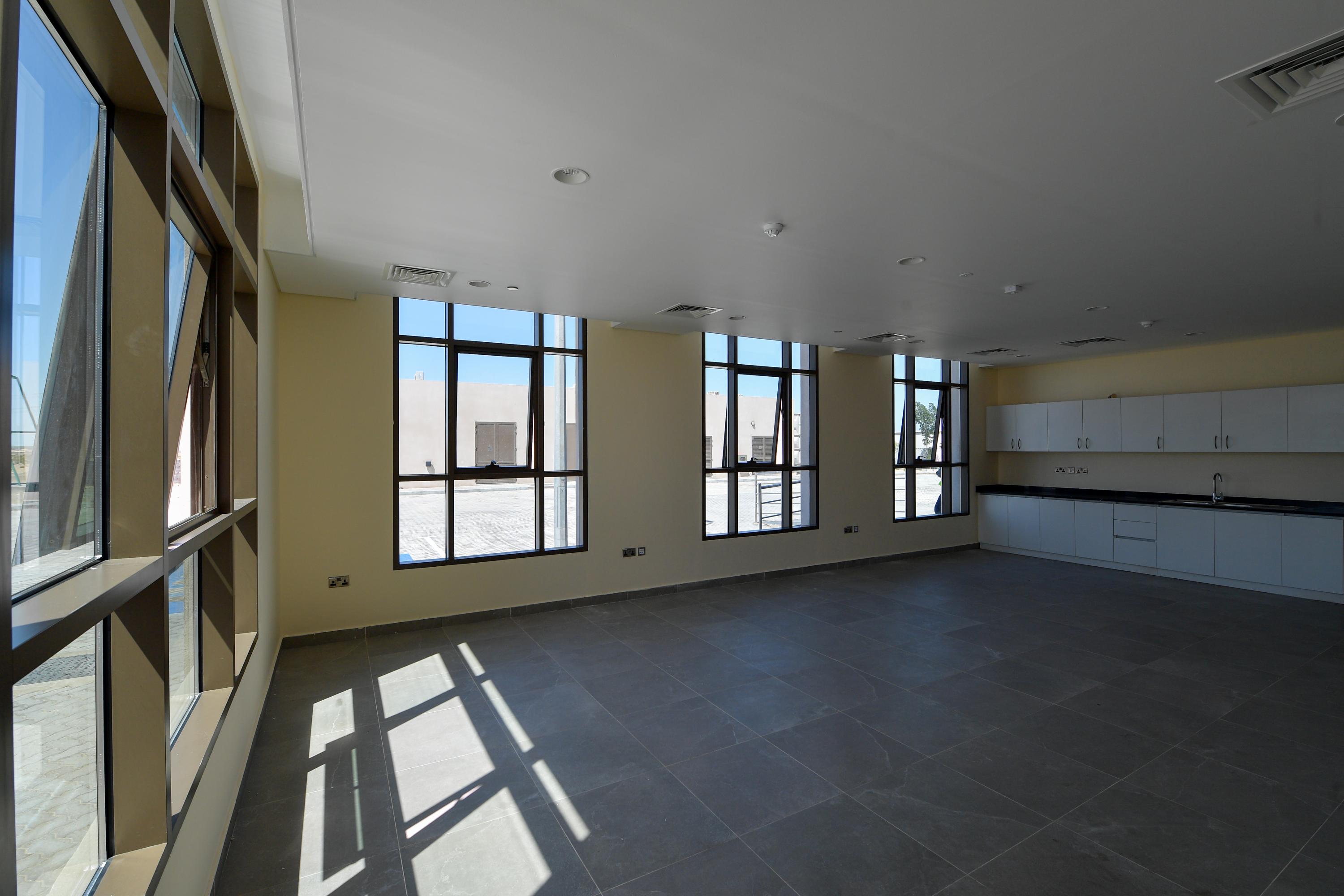

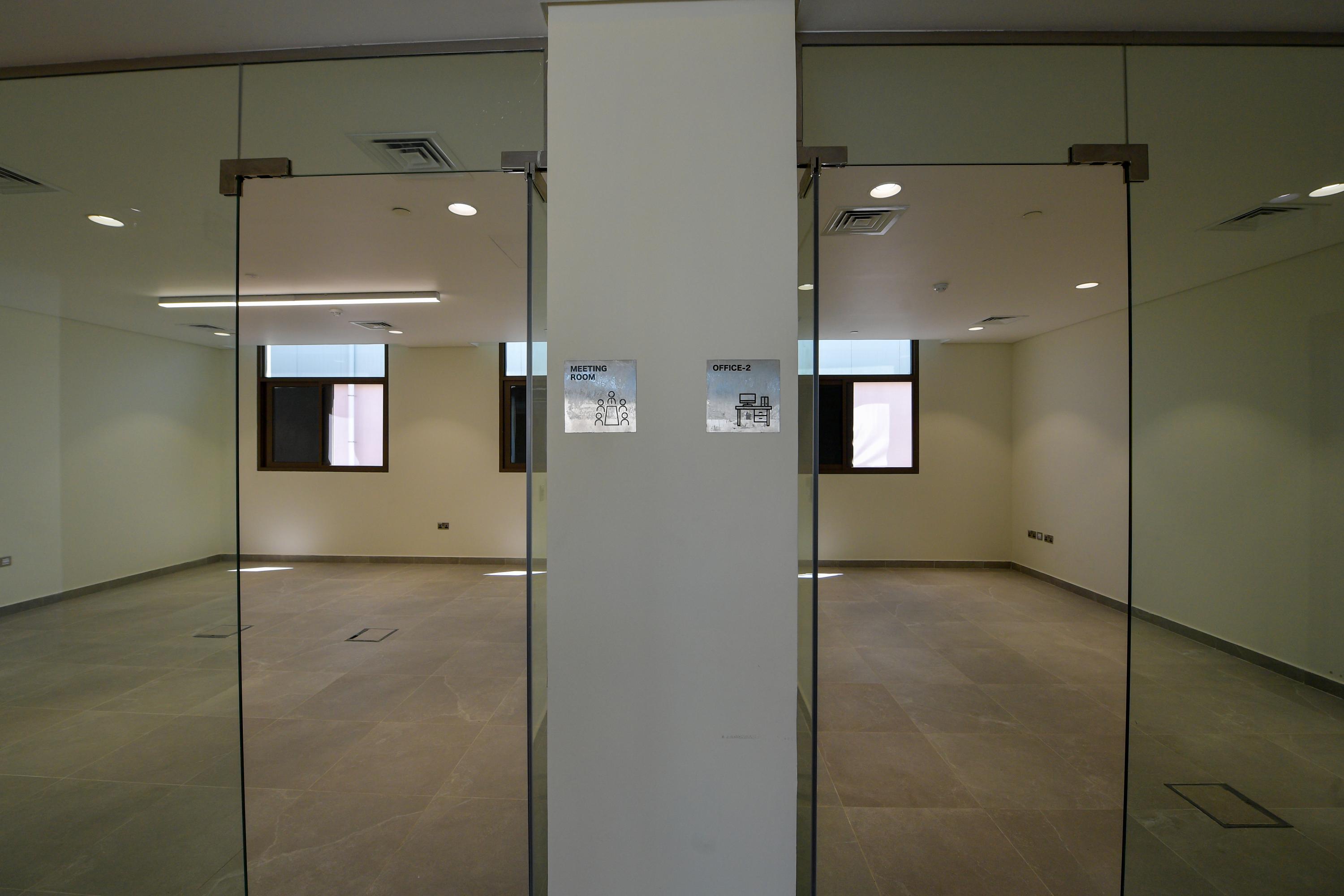

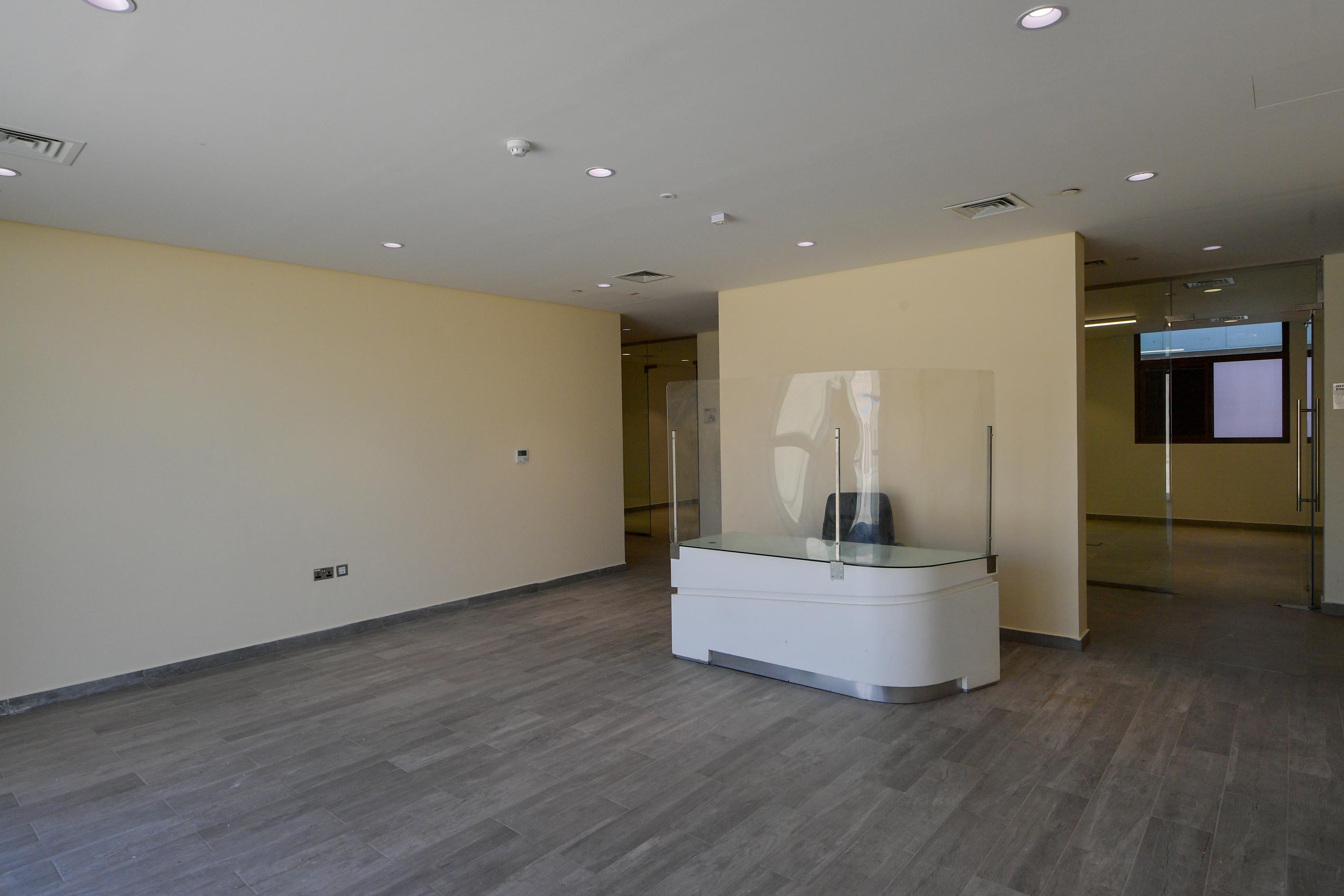

- On-site production offices
- Rehearsal spaces.

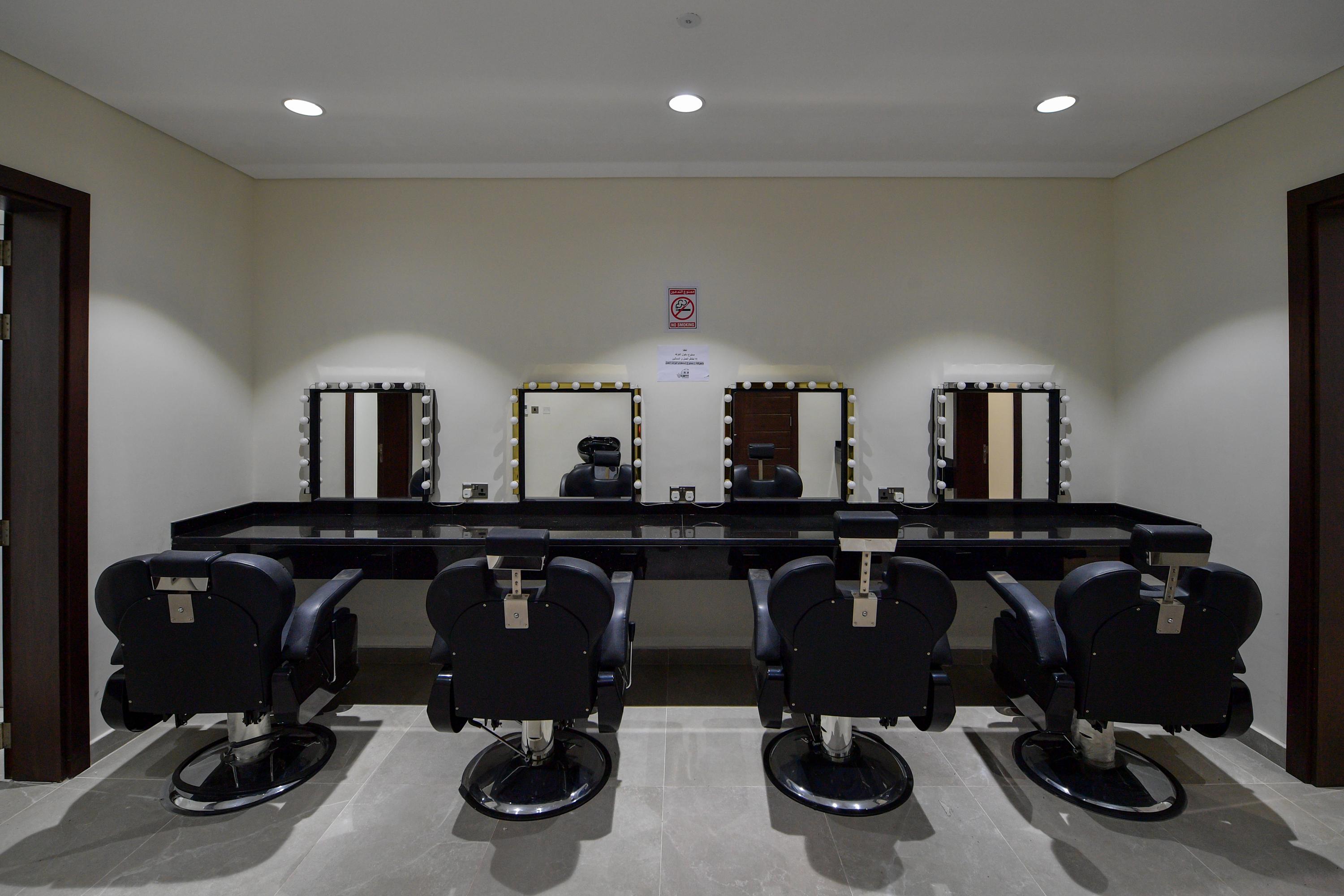

- Hair and Makeup/Wardrobe Room
1500 SQM
Logistics and access
Soundstage Acoustic Double Doors:
- Primary – Width 4.45 m –Height 5.50 m – Qty – 1 No
- Secondary – Width 3.0 m –Height 3.0 m – Qty – 1 No.
Public access:
- Width 1.1 m – Height 2.3 – 1 No.
Emergency exit doors:
- Width 1.0m – Height 2.3 – Qty – 3 No.
Fire & safety systems
Fire fighting systems:
- Naffco sprinkler system
Fire alarm systems:
- Vesda fire alarm system

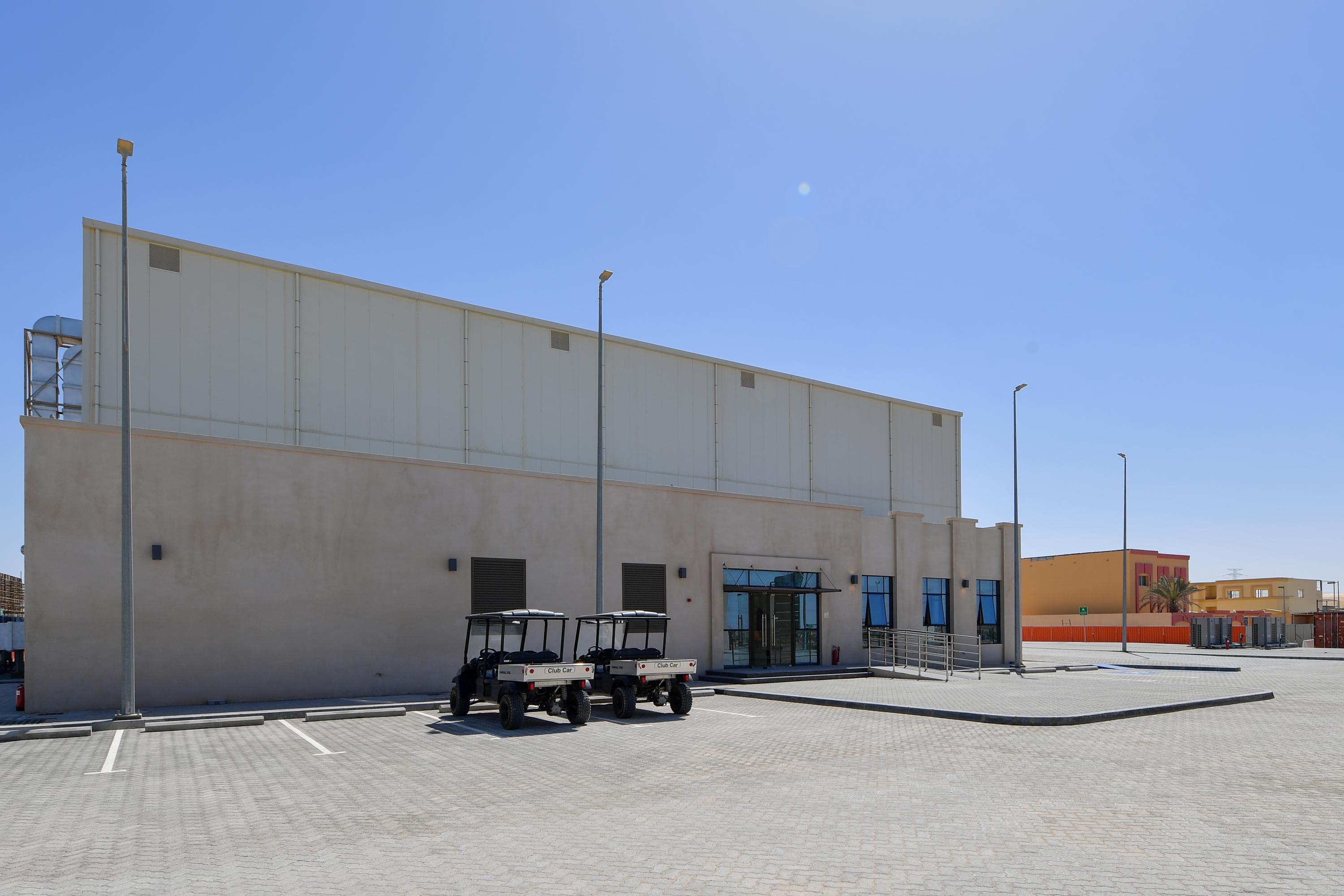

Office building dimensions
- Length – 31.0 m
- Width – 13.3 m
- Area – 412.3 sqm
Utility building dimensions
Soundstage Acoustic Double Doors:
- Length – 6.0 m
- Width – 27.4 m
- Area –164.4 sqm
Acoustic specs
Noise resistance properties:
- Sound Stage 1 has a noise rating of NR-25
Noise reverberation properties:
- Sound Stage 1 is equipped with A2Heraklith 50mm rockwall insulation on thewalls and ceiling.
- A reverberation of 0.86 S at 500 Hz
Structure
Soundstage Steel Structure
- Pre-engineered steel structure, noadditional load allowed. Refer to lightingtruss for available load
Epoxy Concrete Floor Load:
- Live load capacity = 500kg/m2

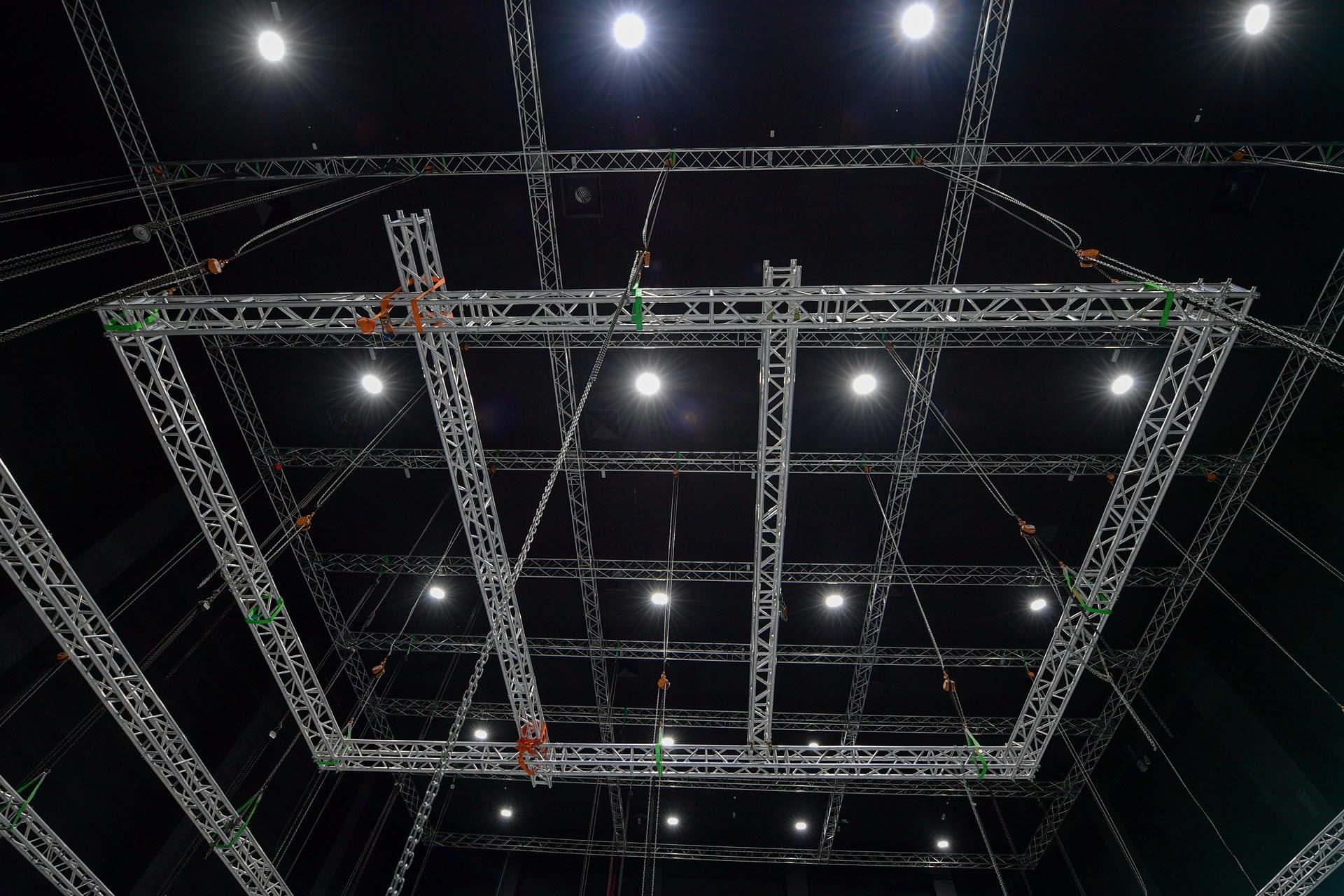

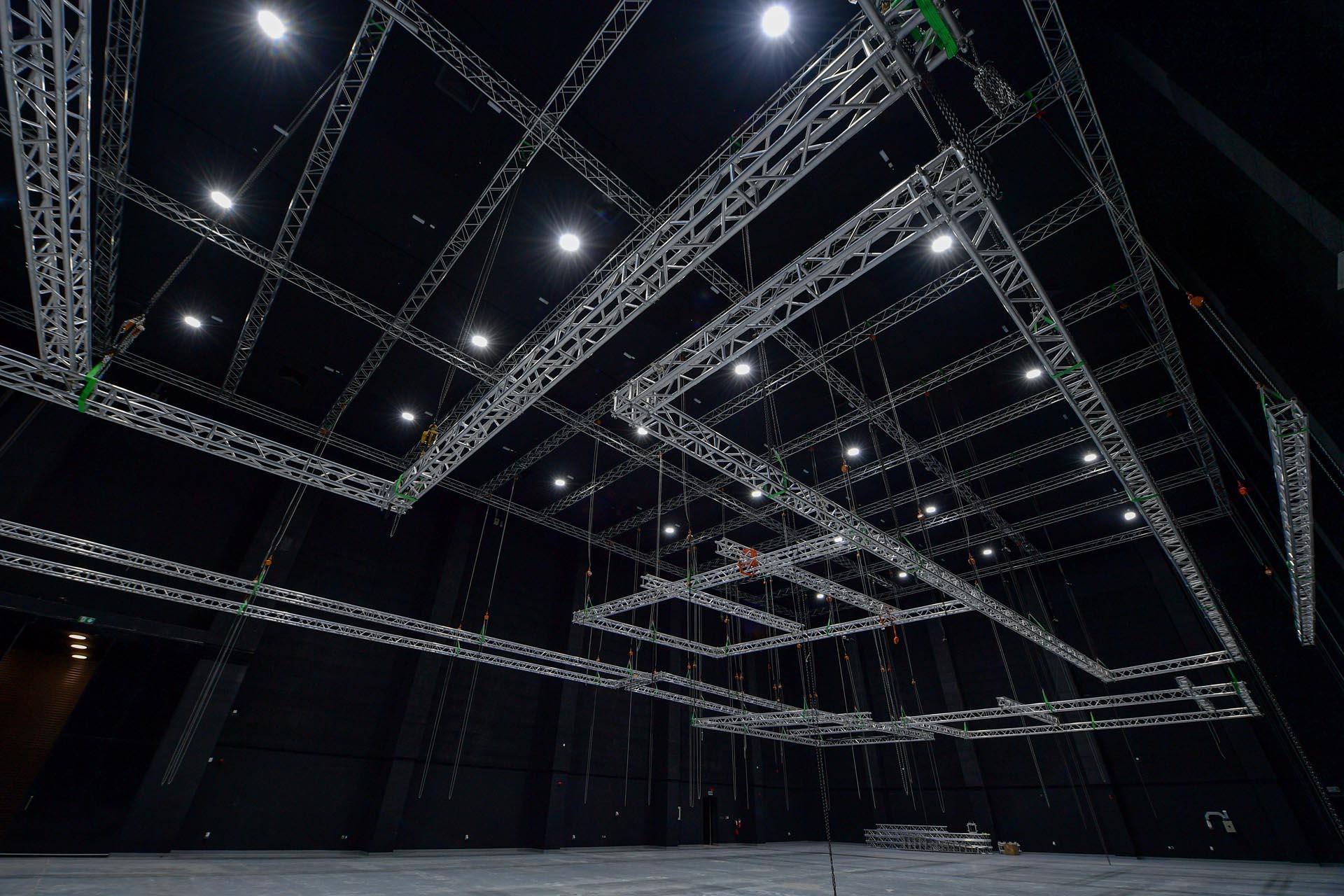

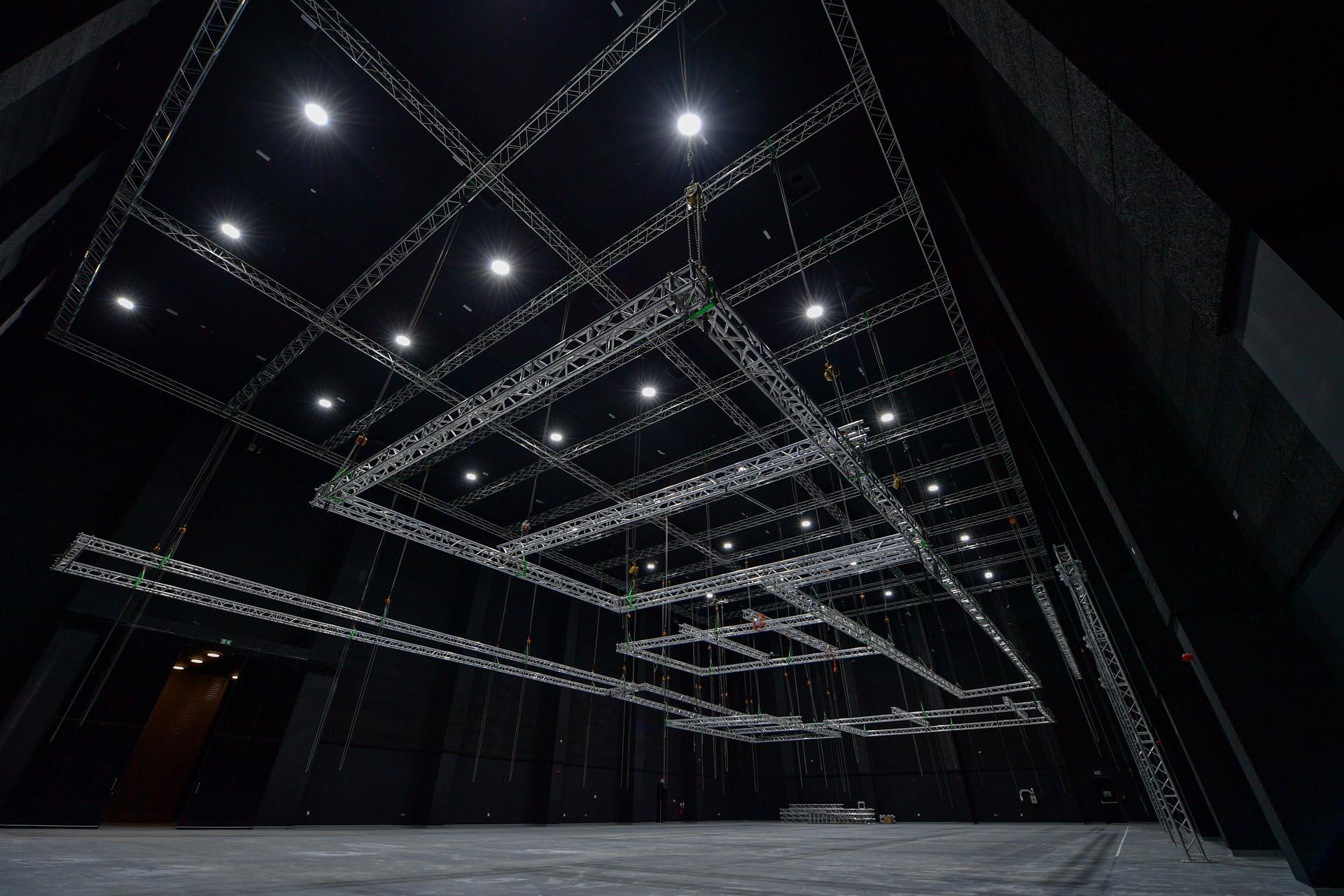

3Lighting Truss:
- 57 kg load per linear meter
Power & lighting
Soundstage overall power:
- Total Connected Load – 918 KW
- Total Demand Load – 485 KW
Soundstage power provision:
- 125 amp – 2 No.
- 64 amp – 9 No.
- 32 amp – 3 No.
- 16 amp – 18 No.
Lighting details (General lighting):
- Qty – 28 no. – 200 Watt Led down lights – Overall Lux levels – 400lumens.
Primary generator details:
- Cummins Diesel Generator – C700D5(O) –700KVA
Water tank details
Domestic water Tank:
- 3.5m x 2.0 m x 2.3m (14.0 m3)
Fire Fighting water Tank:
- 8.0m x 7.0m x 3.5m (173.0 m3)
Sewage water Tank:
- 6.6m x 3.3m x 3m (58.0 m3)
